Optimising part design for flow, quality, and efficiency

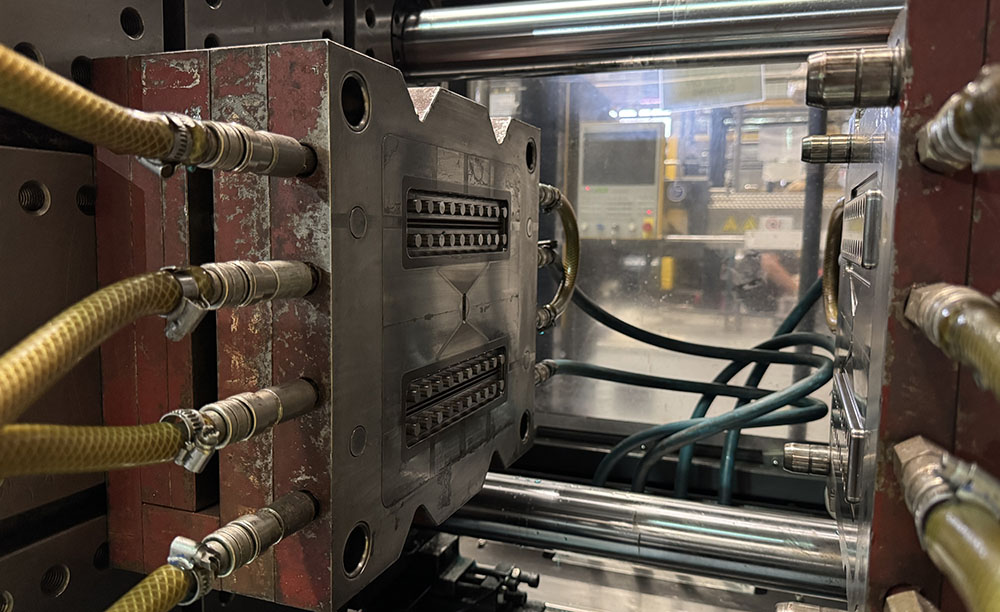

In injection moulding, the gate is the entry point where molten plastic flows into the cavity of a tool. While small in size, gate design and placement have a significant impact on part quality, cycle times, and overall moulding efficiency. Poorly designed or incorrectly positioned gates can lead to cosmetic defects, uneven filling, and unnecessary stress in the part.
At CJ Tool & Mouldings, we work closely with design engineers and product developers to ensure gate design is considered early in the process. By combining experience, mould flow analysis, and in-house tooling expertise, we optimise gating strategies to achieve strong, consistent results.
Types of Gates
Different gate types are used depending on the geometry of the part, the material being processed, and the required aesthetics. Some of the most common include:
- Edge Gate: A versatile and widely used option, positioned at the edge of the part. Effective for flat or rectangular parts.
- Submarine (or Tunnel) Gate: Automatically trims during ejection, ideal for high-volume production and small parts.
- Pin Gate: Small and precise, often used for multi-cavity tools and components requiring cosmetic surfaces.
- Fan Gate: Distributes flow across a wider area, reducing shear and improving filling in thin-walled parts.
- Hot Tip Gate: Suitable for single-cavity moulds and applications where balanced flow from the centre is required.
Each gate type comes with advantages and limitations. Selecting the right gate type requires a balance of function, aesthetics, and production efficiency.
Why Gate Placement Matters
Even the best-designed tool can produce poor results if the gate is incorrectly positioned. Gate placement directly affects how material flows into the part and solidifies during cooling.
Key considerations for gate placement include:
- Balanced Filling: Gates should be positioned to allow even material distribution, reducing the risk of warpage or sink marks.
- Aesthetics: Gates should be located away from cosmetic surfaces to avoid visible marks or blemishes.
- Minimising Weld Lines: Correct gate placement helps prevent weak weld lines where two flow fronts meet.
- Ejection Efficiency: Gates should not interfere with ejection pins or risk damaging critical features during part removal.
- Cycle Time: Placing gates in areas that allow efficient cooling reduces overall cycle times.
Collaborating on Gate Design
Gate design and placement are not just tooling considerations, they should be discussed as part of the overall design-for-manufacture process. By collaborating early, potential problems can be addressed before tooling is produced.
At CJ Tool & Mouldings, we use mould flow analysis to simulate how plastic will fill a cavity, helping to identify the best gate type and placement before committing to tooling. This reduces risk, saves time, and ensures parts meet both functional and cosmetic requirements.
Designing for Performance and Production
Gates may be small, but their role in injection moulding is critical. From preventing cosmetic defects to ensuring balanced filling, correct gate design and placement contribute directly to the success of your project.
With decades of experience in tooling and moulding, CJ Tool & Mouldings provides the expertise design engineers need to get these details right. By addressing gating early, we help our customers reduce lead times, improve product quality, and deliver reliable results from first shot to full production.
If you’re developing a new component, our team is here to provide expert input on gate design and placement to make sure your project succeeds.
